KI-TK036-SM 9000

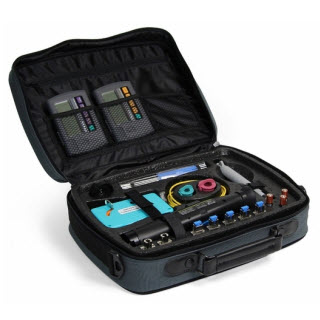

Complete SM 9000 FiberTester Kit KI-TK036 contains:
- KI9822A Optical Light Source & standard accessories
- KI9600A-InGaAs Optical Power Meter & standard accessories
- KI6610 Microscope & standard accessories
- OPT155 Carry case and standard contents
Key features of KI-TK036-SM 9000:
- Optical power measurement from -60 to +5 dBm, calibrations at 9 wavelengths.
- Optical loss testing on single mode fiber at 1310/1550 nm with a range of 60 dB.
- Software for cable testing data capture, pass/fail and custom reporting (manual data entry).
- 12 fiber Multi-Fiber ID continuity / tone source & detection up to 50 dB loss using tone features on the source and meter.
- Visible fault locator pen (order separately as required).
- Optional Adjustable Optical Attenuator for margin testing etc.
- Connector end-face inspection microscope x200 (or optional x400 microscope, or optional fiber identifier).
- Connector cleaning tools & materials for various connector styles.
- Low to modest test volume on singlemode systems, with excellent operational flexibility.
- Kit and options generally meet current regulations & standards for safety & test methods.
