KI-TK077-SM 2000

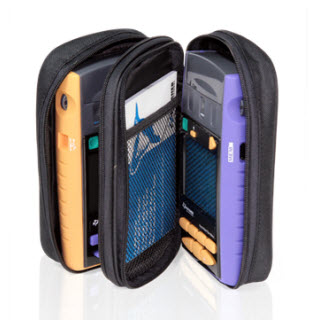

SM Large Pocket 2000 FiberTester Kit KI-TK077 contains:

• KI2822 Optical Light Source & standard accessories
• KI2600-InGaAs Optical Power Meter & standard accessories

Key features of KI-TK077-SM:

• Optical power measurement from -70 to +10 dBm, calibrations at 24 wavelengths.
• Optical loss testing on single mode fiber 1310 / 1550 nm with a range of 70 dB.
• Fast and easy loss testing automation & reporting with AutoTest and KITS™ software, with pass/fail and custom reporting.
• 12 fiber Multi-Fiber ID continuity / tone source & detection up to 50 dB loss using tone features on the source and meter.
• Optional visible fault locator for either source or power meter.
• Optional Adjustable Optical Attenuator for margin testing etc.
• Low to medium test volume on both single mode and multimode systems, with excellent operational flexibility.
• Kit and options generally meet current regulations & standards for safety & test methods.
• Meets the test equipment requirements of ANSI / TIA / EIA-568-C.0 Tier 1.
